Create Token

Apple Pay in Apps

If you want to know the latest SDK version and the difference between each version, please refer to Github Release Page: TapPay iOS Github

Support iOS 10 and later.

Apple Pay works with Safari, Google’s Chrome, Microsoft’s Edge and Mozilla’s Firefox browsers on the iPhone in the fourth beta of iOS 16 and iPadOS 16 or above. Other versions only support on Safari.

Environment

Before you get to coding, make sure you have done the following things:

1. Download and import TPDirect.framework into your project.
2. Import PassKit.framework into your project.
3. Enable Apple Pay in your Xcode and add Apple Merchant IDs.

4. Use TPDSetup to set up your environment.
5. Please open Advertising Identifier, to improve the accuracy of fraud detect.

TPDSetup

+ (instancetype _Nonnull)setWithAppId:(int)appId
                           withAppKey:(NSString *_Nonnull)appKey
                       withServerType:(TPDServerType)serverType;

class func setWithAppKey(_ appKey: String, withAppId appId: Int32, with serverType: TPDServerType) -> Self

...

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
    // Override point for customization after application launch.
    [TPDSetup setWithAppId:"APP_ID" withAppKey:@"APP_KEY" withServerType:TPDServer_SandBox];

    return YES;
}

...

func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplicationLaunchOptionsKey: Any]?) -> Bool {
  // Override point for customization after application launch.
  TPDSetup.setWithAppId("APP_ID", withAppKey: "APP_KEY", with: TPDServerType.sandBox)

  return true
}

Name	Type	Usage
appID	int	Application identifier
appKey	String	Application authorization key
serverType	TPDServerType	Types of server. Use Sandbox(TPDServerType.Sandbox) for testing, and switch to Production(TPDServerType.Production) after your product launches.

Please open Advertising Identifier, to improve the accuracy of fraud detect.

Codes

1. Import PassKit and TPDirect frameworks into your project.


#import <PassKit/PassKit.h>
#import <TPDirect/TPDirect.h>

import PassKit
import TPDirect

2. Implement the following classes in order:

TPDApplePay

@interface ViewController () <TPDApplePayDelegate>

@property (nonatomic, strong) TPDApplePay *applePay;

@end

class ViewController: UIViewController {

    var applePay : TPDApplePay!

}

TPDApplePayDelegate

@protocol TPDApplePayDelegate <NSObject>

@required
// Send To The Delegate After Receive Prime and prime expiry millis.
- (void)tpdApplePay:(TPDApplePay *)applePay didReceivePrime:(NSString *)prime withExpiryMillis:(long)expiryMillis withCardInfo:(TPDCardInfo *)cardInfo withMerchantReferenceInfo:(NSDictionary *)merchantReferenceInfo;

// Send To The Delegate After Apple Pay Payment Processing Succeeds.
- (void)tpdApplePay:(TPDApplePay *)applePay didSuccessPayment: (TPDTransactionResult *)result;

// Send To The Delegate After Apple Pay Payment Processing Fails.
- (void)tpdApplePay:(TPDApplePay *)applePay didFailurePayment: (TPDTransactionResult *)result;

@optional
// Send To The Delegate After Apple Pay Payment's Form Is Shown.
- (void)tpdApplePayDidStartPayment:(TPDApplePay *)applePay;

// Send To The Delegate After User Selects A Payment Method.
// You Can Change The PaymentItem Or Discount Here.
- (TPDCart *)tpdApplePay:(TPDApplePay *)applePay didSelectPaymentMethod: (PKPaymentMethod *)paymentMethod cart:(TPDCart *)cart;

// Send To The Delegate After User Selects A Shipping Method.
// Set shippingMethods ==> TPDMerchant.shippingMethods.
- (void)tpdApplePay:(TPDApplePay *)applePay didSelectShippingMethod: (PKShippingMethod *)shippingMethod;

// Send To The Delegate After User Authorizes The Payment.
// You Can Check Shipping Contact Here, Return YES If Authorized.
- (BOOL)tpdApplePay:(TPDApplePay *)applePay canAuthorizePaymentWithShippingContact:(PKContact *)shippingContact;

// Send To The Delegate After User Cancels The Payment.
- (void)tpdApplePayDidCancelPayment:(TPDApplePay *)applePay;

// Send To The Delegate After Apple Pay Payment's Form Disappeared.
- (void)tpdApplePayDidFinishPayment:(TPDApplePay *)applePay;

@end

public protocol TPDApplePayDelegate : NSObjectProtocol {
  // Send To The Delegate After Receive Prime.
  public func tpdApplePay(_ applePay: TPDApplePay!, didReceivePrime prime: String!, withExpiryMillis expiryMillis: Int, withCardInfo cardInfo: TPDCardInfo, withMerchantReferenceInfo merchantReferenceInfo: [AnyHashable : Any]!)

  // Send To The Delegate After Apple Pay Payment Processing Succeeds.
  public func tpdApplePay(_ applePay: TPDApplePay!, didSuccessPayment result: TPDTransactionResult!)

  // Send To The Delegate After Apple Pay Payment Processing Fails.
  public func tpdApplePay(_ applePay: TPDApplePay!, didFailurePayment result: TPDTransactionResult!)

  // Send To The Delegate After Apple Pay Payment's Form Is Shown.
  optional public func tpdApplePayDidStartPayment(_ applePay: TPDApplePay!)

  // Send To The Delegate After User Selects A Payment Method.
  // You Can Change The PaymentItem Or Discount Here.
  @available(iOS 9.0, *)
  optional public func tpdApplePay(_ applePay: TPDApplePay!, didSelect paymentMethod: PKPaymentMethod!, cart: TPDCart!) -> TPDCart!

  // Send To The Delegate After User Selects A Shipping Method.
  // Set shippingMethods ==> TPDMerchant.shippingMethods.
  @available(iOS 8.0, *)
  optional public func tpdApplePay(_ applePay: TPDApplePay!, didSelect shippingMethod: PKShippingMethod!)

  // Send To The Delegate After User Authorizes The Payment.
  // You Can Check Shipping Contact Here, Return YES If Authorized.
  @available(iOS 9.0, *)
  optional public func tpdApplePay(_ applePay: TPDApplePay!, canAuthorizePaymentWithShippingContact shippingContact: PKContact!) -> Bool

  // Send To The Delegate After User Cancels The Payment.
  optional public func tpdApplePayDidCancelPayment(_ applePay: TPDApplePay!)

  // Send To The Delegate After Apple Pay Payment's Form Disappeared.
  optional public func tpdApplePayDidFinishPayment(_ applePay: TPDApplePay!)
}

Name	Usage
didSuccessPayment	Called when a successful payment has been made.
didFailurePayment	Called when the payment failed.
tpdApplePayDidStartPayment	Called when the payment begins.
didSelectPaymentMethod	Called when a payment method is selected.
didSelectShippingMethod	Called when a shipping method is selected.
canAuthorizePaymentWithShippingContact	Check if the payment can be authorized with the given shipping contact.
tpdApplePayDidCancelPayment	Called when the payment is cancelled.
tpdApplePayDidFinishPayment	Called when the payment is finished, but before the result has been determined.
didReceivePrime:withExpiryMillis:withCardInfo:withMerchantReferenceInfo	Called when you obtained the Prime and expiry millis from TapPay. You should pass this token back to your server, and call our Pay by Prime API to finish the transaction. Afterwards, call “showPaymentResult” to display the result.
showPaymentResult	Called after you finished the payment process on your server with Pay by Prime API.

TPDTransactionResult

  @interface TPDTransactionResult : NSObject
  // message, Report Message.
  @property (nonatomic, strong) NSString *message;

  // status, Result Code, '0' Means Success.
  @property (nonatomic, assign) NSInteger status;

  // amount
  @property (nonatomic, strong) NSDecimalNumber *amount;

  // paymentMehod
  @property (nonatomic, strong) PKPaymentMethod *paymentMethod;
  @end

class TPDTransactionResult : NSObject {
  // message, Report Message.
  var message: String!

  // status, Result Code, '0' Means Success.
  var status: Int

  // amount
  var amount: NSDecimalNumber!

  // paymentMehod
  var paymentMethod: PKPaymentMethod!
}

The returned object in didSuccessPayment and didFailurePayment, TPDTransactionResult, will contain the following values:

Name	Usage
amount	Amount for the transaction.
status	Status code for the transaction.
message	Error message for the transaction.
paymentMehod	Apple’s PKPaymentMethod

- (void)tpdApplePayDidStartPayment:(TPDApplePay *)applePay {
  NSLog(@"=====================================================");
  NSLog(@"Apple Pay On Start");
  NSLog(@"===================================================== \n\n");
}

- (void)tpdApplePay:(TPDApplePay *)applePay didSuccessPayment: (TPDTransactionResult *)result {
  NSLog(@"=====================================================");
  NSLog(@"Apple Pay Did Success ==> Amount : %@", [result.amount stringValue]);
  NSLog(@"shippingContact.name : %@ %@", applePay.consumer.shippingContact.name.givenName, applePay.consumer.shippingContact.name.familyName);
  NSLog(@"shippingContact.emailAddress : %@", applePay.consumer.shippingContact.emailAddress);
  NSLog(@"shippingContact.phoneNumber : %@", applePay.consumer.shippingContact.phoneNumber.stringValue);
  NSLog(@"===================================================== \n\n");
}

- (void)tpdApplePay:(TPDApplePay *)applePay didFailurePayment: (TPDTransactionResult *)result {
  NSLog(@"=====================================================");
  NSLog(@"Apple Pay Did Failure ==> Message : %@, ErrorCode : %ld", result.message, (long)result.status);
  NSLog(@"===================================================== \n\n");
}

- (void)tpdApplePayDidCancelPayment:(TPDApplePay *)applePay {
  NSLog(@"=====================================================");
  NSLog(@"Apple Pay Did Cancel");
  NSLog(@"===================================================== \n\n");
}

- (void)tpdApplePayDidFinishPayment:(TPDApplePay *)applePay {
  NSLog(@"=====================================================");
  NSLog(@"Apple Pay Did Finish");
  NSLog(@"===================================================== \n\n");
}

- (void)tpdApplePay:(TPDApplePay *)applePay didSelectShippingMethod: (PKShippingMethod *)shippingMethod {
  NSLog(@"=====================================================");
  NSLog(@"======> didSelectShippingMethod: ");
  NSLog(@"Shipping Method.identifier : %@", shippingMethod.identifier);
  NSLog(@"Shipping Method.detail : %@", shippingMethod.detail);
  NSLog(@"===================================================== \n\n");
}

- (TPDCart *)tpdApplePay:(TPDApplePay *)applePay didSelectPaymentMethod: (PKPaymentMethod *)paymentMethod cart:(TPDCart *)cart {
  NSLog(@"=====================================================");
  NSLog(@"======> didSelectPaymentMethod: ");
  NSLog(@"===================================================== \n\n");
  if (paymentMethod.type == PKPaymentMethodTypeDebit) {
    [self.cart addPaymentItem:[TPDPaymentItem paymentItemWithItemName:@"Discount"
                                                           withAmount:[NSDecimalNumber decimalNumberWithString:@"-1.00"]]];
  }
  return self.cart;
}

- (BOOL)tpdApplePay:(TPDApplePay *)applePay canAuthorizePaymentWithShippingContact:(PKContact *)shippingContact {
  NSLog(@"=====================================================");
  NSLog(@"======> canAuthorizePaymentWithShippingContact ");
  NSLog(@"shippingContact.name : %@ %@", applePay.consumer.shippingContact.name.givenName, applePay.consumer.shippingContact.name.familyName);
  NSLog(@"shippingContact.emailAddress : %@", shippingContact.emailAddress);
  NSLog(@"shippingContact.phoneNumber : %@", shippingContact.phoneNumber.stringValue);
  NSLog(@"===================================================== \n\n");
  return YES;
}

- (void)tpdApplePay:(TPDApplePay *)applePay didReceivePrime:(NSString *)prime withExpiryMillis:(long)expiryMillis withCardInfo:(TPDCardInfo *)cardInfo withMerchantReferenceInfo:(NSDictionary *)merchantReferenceInfo {

  // 1. Send Your 'Prime' To Your Server, And Handle Payment With Result
  // ...
  NSLog(@"=====================================================");
  NSLog(@"======> didReceivePrime ");
  NSLog(@"Prime : %@", prime);
  NSLog(@"apple pay %lu", expiryMillis);
  NSLog(@"totalAmount : %@",applePay.cart.totalAmount);
  NSLog(@"Client  IP : %@",applePay.consumer.clientIP);
  NSLog(@"shippingContact.name : %@ %@", applePay.consumer.shippingContact.name.givenName, applePay.consumer.shippingContact.name.familyName);
  NSLog(@"shippingContact.emailAddress : %@", applePay.consumer.shippingContact.emailAddress);
  NSLog(@"shippingContact.phoneNumber : %@", applePay.consumer.shippingContact.phoneNumber.stringValue);
  PKPaymentMethod * paymentMethod = applePay.consumer.paymentMethod;
  NSLog(@"Type : %ld", (long)paymentMethod.type);
  NSLog(@"Network : %@", paymentMethod.network);
  NSLog(@"Display Name : %@", paymentMethod.displayName);
  NSLog(@"===================================================== \n\n");

  // 2. If Payment Success, applePay.
  BOOL paymentResult = YES;
  [applePay showPaymentResult:paymentResult];
}

extension ViewController :TPDApplePayDelegate {

  func tpdApplePayDidStartPayment(_ applePay: TPDApplePay!) {
    print("=====================================================")
    print("Apple Pay On Start")
    print("=====================================================\n\n")
  }

  func tpdApplePay(_ applePay: TPDApplePay!, didSuccessPayment result: TPDTransactionResult!) {
    print("=====================================================")
    print("Apple Pay Did Success ==> Amount : \(result.amount.stringValue)")
    print("shippingContact.name : \(applePay.consumer.shippingContact?.name?.givenName) \( applePay.consumer.shippingContact?.name?.familyName)")
    print("shippingContact.emailAddress : \(applePay.consumer.shippingContact?.emailAddress)")
    print("shippingContact.phoneNumber : \(applePay.consumer.shippingContact?.phoneNumber?.stringValue)")
    print("Shipping Method.identifier : \(applePay.cart.shippingMethod.identifier)")
    print("Shipping Method.detail : \(applePay.cart.shippingMethod.detail)")
    print("=====================================================\n\n")
  }

  func tpdApplePay(_ applePay: TPDApplePay!, didFailurePayment result: TPDTransactionResult!) {
    print("=====================================================")
    print("Apple Pay Did Failure ==> Message : \(result.message), ErrorCode : \(result.status)")
    print("=====================================================\n\n")
  }

  func tpdApplePayDidCancelPayment(_ applePay: TPDApplePay!) {
    print("=====================================================")
    print("Apple Pay Did Cancel")
    print("=====================================================\n\n")
  }

  func tpdApplePayDidFinishPayment(_ applePay: TPDApplePay!) {
    print("=====================================================")
    print("Apple Pay Did Finish")
    print("=====================================================\n\n")
  }

  func tpdApplePay(_ applePay: TPDApplePay!, didSelect shippingMethod: PKShippingMethod!) {
    print("=====================================================")
    print("======> didSelectShippingMethod: ")
    print("Shipping Method.identifier : \(shippingMethod.identifier)")
    print("Shipping Method.detail : \(shippingMethod.detail)")
    print("=====================================================\n\n")
  }

  func tpdApplePay(_ applePay: TPDApplePay!, didSelect paymentMethod: PKPaymentMethod!, cart: TPDCart!) -> TPDCart! {
    print("=====================================================");
    print("======> didSelectPaymentMethod: ");
    print("=====================================================\n\n");
    if paymentMethod.type == .debit {
      self.cart.add(TPDPaymentItem(itemName: "Discount", withAmount: NSDecimalNumber(string: "-1.00")))
    }
    return self.cart;
  }

  func tpdApplePay(_ applePay: TPDApplePay!, canAuthorizePaymentWithShippingContact shippingContact: PKContact!) -> Bool {
    print("=====================================================")
    print("======> canAuthorizePaymentWithShippingContact ")
    print("shippingContact.name : \(applePay.consumer.shippingContact?.name?.givenName) \( applePay.consumer.shippingContact?.name?.familyName)")
    print("shippingContact.emailAddress : \(shippingContact.emailAddress)")
    print("shippingContact.phoneNumber : \(shippingContact.phoneNumber?.stringValue)")
    print("=====================================================\n\n")
    return true;
  }

  tpdApplePay(_ applePay: TPDApplePay!, didReceivePrime prime: String!, withExpiryMillis expiryMillis: Int, withCardInfo cardInfo: TPDCardInfo, withMerchantReferenceInfo merchantReferenceInfo: [AnyHashable : Any]!) {

    // 1. Send Your Prime To Your Server, And Handle Payment With Result
    // ...
    print("=====================================================");
    print("======> didReceivePrime");
    print("Prime : \(prime!)");
    print("Expiry Millis : \(expiryMillis)");
    print("total Amount :   \(applePay.cart.totalAmount!)")
    print("Client IP : \(applePay.consumer.clientIP!)")
    print("shippingContact.name : \(applePay.consumer.shippingContact?.name?.givenName) \(applePay.consumer.shippingContact?.name?.familyName)");
    print("shippingContact.emailAddress : \(applePay.consumer.shippingContact?.emailAddress)");
    print("shippingContact.phoneNumber : \(applePay.consumer.shippingContact?.phoneNumber?.stringValue)");
    let paymentMethod = self.consumer.paymentMethod!
    print("type : \(paymentMethod.type.rawValue)")
    print("Network : \(paymentMethod.network!.rawValue)")
    print("Display Name : \(paymentMethod.displayName!)")
    print("===================================================== \n\n");

    // 2. If Payment Success, applePay.
    let paymentResult = true;
    applePay.showPaymentResult(paymentResult)
    }
}

Name	Type	Content
prime	String	prime token used in Pay by Prime
expiryMillis	Int	prime expired millis
cardInfo	TPDCardInfo	Card information： Name Type(Max) Usage bincode String(6) First six digits of the card lastFour String(4) Last four digits of the card issuer String Card issuer issuerZhTw String Card issuer chinese name bankId String Bank identifier funding int Card usage -1 = Unknown 0 = credit card 1 = debit card 2 = prepaid card cardType int Card type -1 = Unknown 1 = VISA 2 = MasterCard 3 = JCB 4 = Union Pay 5 = AMEX level String Card level country String Country of card issuer countryCode String Country code of card issuer
merchantReferenceInfo	JSONObject	If the merchant uses the co-branded card management in the TapPay portal, and the transaction card number meets the setting, this parameter will be returned. Set in TapPay Portal, must limit 20 character and half alphanumeric. Not support : JKOPAY Name Type Content affiliateCodes Array Affiliated codes set by the merchant in the Co-brand card management area of ​​the TapPay portal.

PKPaymentButton

@interface ViewController () <TPDApplePayDelegate>

@property (nonatomic, strong) PKPaymentButton *applePayButton;

@end

class ViewController: UIViewController {

    var applePayButton : PKPaymentButton!

}

You should check if the card or the device supports Apple Pay before setting up the payment button.

/**
[TPDApplePay canMakePaymentsUsingNetworks:(NSArray<PKPaymentNetwork> *)]
  Check support cart network.

  TPDApplePay setupWthMerchant:(TPDMerchant *) withConsumer:(TPDConsumer *) withCart:(TPDCart *) withDelegate:(id)
  Use TPDMerchant, TPDConsumer, TPDCart to initial Apple Pay Instance.

  startPayment
  Start Apple Pay Payment Sheet
*/

- (void)paymentButtonSetting {

    // Check if the card can use Apple Pay.
    if ([TPDApplePay canMakePaymentsUsingNetworks:self.merchant.supportedNetworks]) {
        self.applePayButton = [PKPaymentButton buttonWithType:PKPaymentButtonTypeBuy style:PKPaymentButtonStyleBlack];
    }else{
        self.applePayButton = [PKPaymentButton buttonWithType:PKPaymentButtonTypeSetUp style:PKPaymentButtonStyleBlack];
    }

    [self.view addSubview:self.applePayButton];
    self.applePayButton.center = self.view.center;

    [self.applePayButton addTarget:self action:@selector(didClickButton:) forControlEvents:UIControlEventTouchUpInside];
}

- (void)didClickButton:(PKPaymentButton *)sender {

    self.applePay = [TPDApplePay setupWthMerchant:self.merchant withConsumer:self.consumer withCart:self.cart withDelegate:self];

    [self.applePay startPayment];
}

/**
  TPDApplePay.canMakePayments(usingNetworks: [PKPaymentNetwork]!)
  Check support cart network.

  TPDApplePay.setupWthMerchant(TPDMerchant!, with: TPDConsumer!, with: TPDCart!, withDelegate: Any!)
  Use TPDMerchant, TPDConsumer, TPDCart to initial Apple Pay Instance.

  startPayment
  Start Apple Pay Payment Sheet
*/

func paymentButtonSetting() {

    // Check if the card can use Apple Pay.
    if (TPDApplePay.canMakePayments(usingNetworks: self.merchant.supportedNetworks)) {
        applePayButton = PKPaymentButton.init(paymentButtonType: .buy, paymentButtonStyle: .black)
    } else {
        applePayButton = PKPaymentButton.init(paymentButtonType: .setUp, paymentButtonStyle: .black)
    }

    view.addSubview(applePayButton)
    applePayButton.center = view.center

    applePayButton.addTarget(self, action: #selector(ViewController.didClickBuyButton(sender:)), for: .touchUpInside)

}

@objc func didClickBuyButton(sender:PKPaymentButton) {

    applePay = TPDApplePay.setupWthMerchant(merchant, with: consumer, with: cart, withDelegate: self)

    applePay.startPayment()

}

TPDMerchant

@interface ViewController () <TPDApplePayDelegate>

@property (nonatomic, strong) TPDMerchant *merchant;

@end

class ViewController: UIViewController {

    var merchant : TPDMerchant!

}

self.merchant = [TPDMerchant new];
self.merchant.merchantName               = @"TapPay!";
self.merchant.merchantCapability         = PKMerchantCapability3DS;
self.merchant.applePayMerchantIdentifier = @"merchant.apple.pay";
self.merchant.countryCode                = @"TW";
self.merchant.currencyCode               = @"TWD";
self.merchant.supportedNetworks          = @[PKPaymentNetworkAmex, PKPaymentNetworkMasterCard, PKPaymentNetworkVisa, PKPaymentNetworkJCB];

merchant = TPDMerchant()
merchant.merchantName               = "TapPay!";
merchant.merchantCapability         = .capability3DS;
merchant.applePayMerchantIdentifier = "merchant.apple.pay";
merchant.countryCode                = "TW";
merchant.currencyCode               = "TWD";
merchant.supportedNetworks          = [.amex, .masterCard, .visa, .JCB]

Name	Values
merchantName	Display merchant name on Payment Sheet.
merchantCapability	The payment capabilities supported by the merchant, please refer to Apple Pay merchantCapabilities
applePayMerchantIdentifier	The Apple Merchant ID.
countryCode	The abbreviation code for the country following the ISO 3166-1 alpha-2 format.
currencyCode	The abbreviation code for the country currency following the ISO 4217 format.
supportedNetworks	Set the credit card network you want to support

supportedNetworks card network supported version

Card network	Version
American Express	iOS 8.0+ watchOS 3.0+
MasterCard	iOS 8.0+ watchOS 3.0+
Visa	iOS 8.0+ watchOS 3.0+
JCB	iOS 10.1+ watchOS 3.1+

TPDConsumer

@interface ViewController () <TPDApplePayDelegate>

@property (nonatomic, strong) TPDConsumer *consumer;

@end

class ViewController: UIViewController {

    var consumer : TPDConsumer!

}

self.consumer = [TPDConsumer new];
self.consumer.requiredShippingAddressFields  = PKAddressFieldEmail | PKAddressFieldName | PKAddressFieldPhone;
self.consumer.requiredBillingAddressFields   = PKAddressFieldPostalAddress;

consumer = TPDConsumer()
consumer.requiredShippingAddressFields  = [.email, .name, .phone]
consumer.requiredBillingAddressFields   = [.postalAddress]

Name	Content
requiredShippingAddressFields	Required shipping address information field. Default no fields required.
requiredBillingAddressFields	Required billing address information field. Default no fields required.

After the Apple Pay authentication is successful, you can get the card information in the didReceivePrime delegate, TPDConsumer.paymentMethod
More info refer to apple pay docs PKPaymentMethod

Name	Content
type	Card type 0 : unknown 1 : debit 2 : credit 3 : prepaid 4 : store
network	Card network
displayName	Card network and card last four number

TPDCart

@interface ViewController () <TPDApplePayDelegate>

@property (nonatomic, strong) TPDCart *cart;

@end

class ViewController: UIViewController {

    var cart     : TPDCart!

}

/**
  [cart addPaymentItem:(TPDPaymentItem *)]
  Add payment item to item list.
*/

self.cart = [TPDCart new];

TPDPaymentItem *book = [TPDPaymentItem paymentItemWithItemName:@"Book"
                                                    withAmount:[NSDecimalNumber decimalNumberWithString:@"100.00"]];
[self.cart addPaymentItem:book];

self.cart.shippingType   = PKShippingTypeShipping;

/**
  cart.add(TPDPaymentItem!)
  Add payment item to item list.
*/

cart = TPDCart()

let book = TPDPaymentItem(itemName:"Book",
                        withAmount: NSDecimalNumber(string: "100.00"))
cart.add(book)

cart.shippingType   = .shipping;

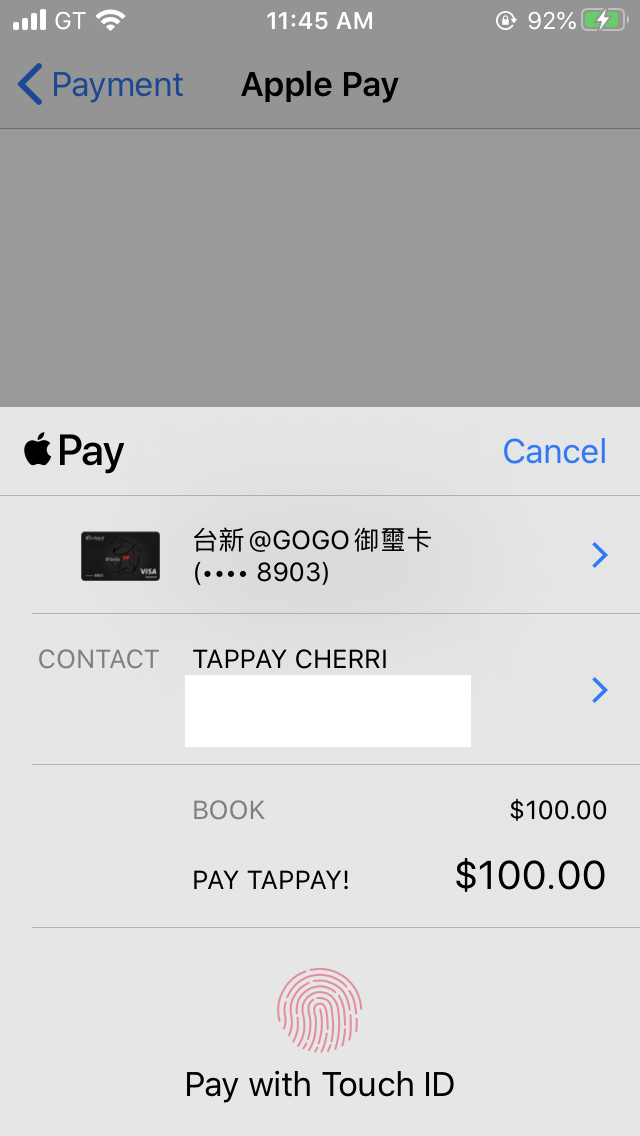

You can use TPDPaymentItem to add new items to TPDCart.
Use paymentItemWithItemName to set up to display the amount of items.
The sum of amount of items in TPDCart must be greater than zero, otherwise the program will return error code: 88016

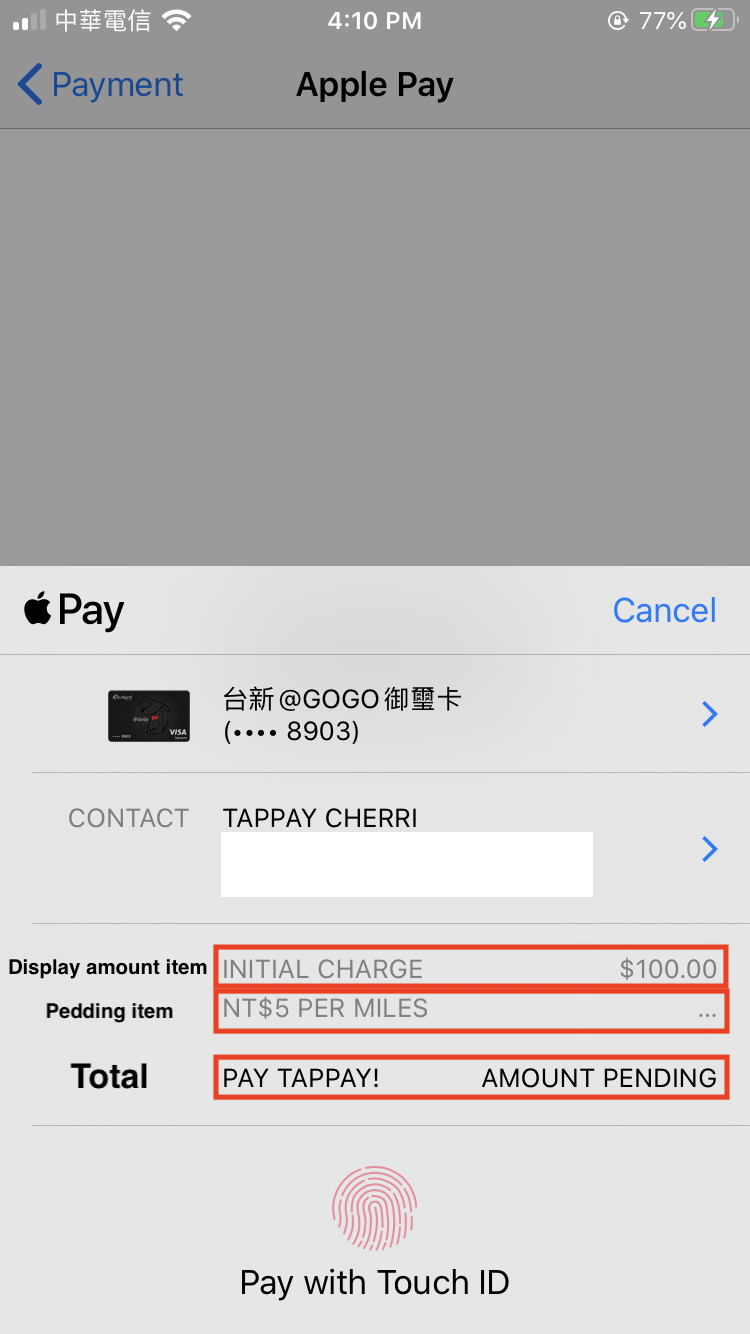

Deferred Payment

self.cart = [TPDCart new];
self.cart.isAmountPending = YES;
self.cart.isShowTotalamount = NO;

TPDPaymentItem *initialCharge = [TPDPaymentItem paymentItemWithItemName:@"Initial Charge"
                                                        withAmount:[NSDecimalNumber decimalNumberWithString:@"100.00"]];
[self.cart addPaymentItem:initialCharge];


TPDPaymentItem *improvementSurcharge  = [TPDPaymentItem pendingPaymentItemWithItemName:@"NT$5 per miles"];
[self.cart addPaymentItem:improvementSurcharge];

cart = TPDCart()
cart.isAmountPending = true
cart.isShowTotalAmount = false

let initialCharge = TPDPaymentItem(itemName: "Initial Charge", withAmount: NSDecimalNumber(string: "100.00"))
cart.add(initialCharge)

let improvementSurcharge = TPDPaymentItem.pendingPaymentItem(withItemName: "NT$5 per miles")
cart.add(improvementSurcharge)

Please contact TapPay Customer Service (support@cherri.tech) to activate Apple Pay deferred payment.
Once the function has been activated, the prime could live for 30 days and payment amount is set by Pay by Prime, not by SDK.
The property isAmountPending of TPDCart could determine whether this transaction enables deferred payment or not. Default is false
The property isShowTotalAmount of TPDCart could determine that total amount of the payment sheet shows the sum of each payment item’s amount or AMOUNT PENDING. Default is false
If the property pendingPaymentItemWithItemName has been set in TPDCart, the payment item’s amount of the payment sheet will show 『．．．』, which means actual payment amount is unknown.

Use deferred payment, please note the following rules

All items in TPDCart have specific amount.

isAmountPending	isShowTotalAmount	Total field	Prime expire time
true	true	Display Total Amount	30days
true	false	Display Amount Pending	30days
false	true	Display Total Amount	90sec
false	false	Not Support, refer to error code: 88013	X

All items in TPDCart are amount pending.

isAmountPending	isShowTotalAmount	Total field	Prime expire time
true	true	Not Support, refer to error code:88014	X
true	false	Display Amount Pending	30days
false	true	Not Support, refer to error code: 88015	X
false	false	Not Support, refer to error code: 88013	X

The items in TPDCart have specific amount and amount pending.

isAmountPending	isShowTotalAmount	Total field	Prime expire time
true	true	Display Total Amount	30days
true	false	Display Amount Pending	30days
false	true	Not Support, refer to error code: 88015	X
false	false	Not Support, refer to error code: 88013	X

Notice
Due to total amount should be set above 0 in iOS 12 and version lower.
For compatibility, iOS SDK v2.6.0 and version higher will set total amount of 1 to Apple Pay in following situation.

1. The items of TPDCart are amount pending items and total amount is set to show 『AMOUNT PENDING』(self.cart.isAmountPending = true).
2. The total amount of items of TPDCart is 0 and total amount is set to show 『AMOUNT PENDING』(self.cart.isAmountPending = true)

Example

If you have any questions, please refer our Apple Pay Example

Apple Pay on the Web

If you want to know the latest SDK version and the difference between each version, please refer to Github Release Page: TapPay Web Github

Apple Pay JavaScript API is only available on iOS device running iOS 10 or later or Mac running macOS Sierra (10.12) or later.

If you enable Apple Pay on the Web Merchant Application Service, please fill in merchant identifier which generated by TapPay (You can find it from Portal > Payment Methods > Apple Pay On The Web)

Requirements

In Apple Pay on the Web, you must meet the following requirements:

1. All pages that include Apple Pay must be served over HTTPS , In production and sandbox. In develop enviroment you can use ngrok to set up an SSH tunnel , you can refer to our Ngrok tutorial
2. Your domain must have a valid SSL certificate.
3. Your server must support the Transport Layer Security (TLS) 1.2 protocol and one of the cipher suites listed below:

Cipher Suite Value	Description
0x13, 0x01	TLS_AES_128_GCM_SHA256
0x13, 0x02	TLS_AES_256_GCM_SHA384
0xC0, 0x2B	ECDHE-ECDSA-AES128-GCM-SHA256
0xC0, 0x2F	ECDHE-RSA-AES128-GCM-SHA256
0xC0, 0x2C	ECDHE-ECDSA-AES256-GCM-SHA384
0xC0, 0x30	ECDHE-RSA-AES256-GCM-SHA384

4. Your server must allow access over HTTPS (TCP over port 443) to the Apple Pay IP Addresses provided below:

IP	Name	Type
17.171.85.7	apple-pay-gateway-cert.apple.com	Sandbox
17.171.78.7	apple-pay-gateway-nc-pod1.apple.com	Production
17.171.78.71	apple-pay-gateway-nc-pod2.apple.com	Production
17.171.78.135	apple-pay-gateway-nc-pod3.apple.com	Production
17.171.78.199	apple-pay-gateway-nc-pod4.apple.com	Production
17.171.79.12	apple-pay-gateway-nc-pod5.apple.com	Production
17.141.128.7	apple-pay-gateway-pr-pod1.apple.com	Production
17.141.128.71	apple-pay-gateway-pr-pod2.apple.com	Production
17.141.128.135	apple-pay-gateway-pr-pod3.apple.com	Production
17.141.128.199	apple-pay-gateway-pr-pod4.apple.com	Production
17.141.129.12	apple-pay-gateway-pr-pod5.apple.com	Production
17.171.78.9	apple-pay-gateway-nc-pod1-dr.apple.com	Production
17.171.78.73	apple-pay-gateway-nc-pod2-dr.apple.com	Production
17.171.78.137	apple-pay-gateway-nc-pod3-dr.apple.com	Production
17.171.78.201	apple-pay-gateway-nc-pod4-dr.apple.com	Production
17.171.79.13	apple-pay-gateway-nc-pod5-dr.apple.com	Production
17.141.128.9	apple-pay-gateway-pr-pod1-dr.apple.com	Production
17.141.128.73	apple-pay-gateway-pr-pod2-dr.apple.com	Production
17.141.128.137	apple-pay-gateway-pr-pod3-dr.apple.com	Production
17.141.128.201	apple-pay-gateway-pr-pod4-dr.apple.com	Production
17.141.129.13	apple-pay-gateway-pr-pod5-dr.apple.com	Production

SetupSDK

Please use following html code to setup payment environment.

Please be aware of the differences of each Web SDK version to avoid loading errors.
https://js.tappaysdk.com/sdk/tpdirect/v5.14.0
https://js.tappaysdk.com/tpdirect/v5.13.1
Please refer to the following usage examples.

<!--
    Use TPDirect.setupSDK(appID, appKey, serverType)
    to setup APP ID, App Key, Server Type parameters
-->

<script src="https://js.tappaysdk.com/sdk/tpdirect/v5.14.0"></script>
<script>
    TPDirect.setupSDK(APP_ID, 'APP_KEY', 'sandbox')
</script>

When use web SDK version less than v5.14.0, please use the following path to include the web SDK

<script src="https://js.tappaysdk.com/tpdirect/v5.13.1"></script>
<script>
    TPDirect.setupSDK(APP_ID, 'APP_KEY', 'sandbox')
</script>

Name	Usage
appID	Please refer to appid
appKey	Please refer to appkey
serverType	Use ‘sandbox’ for sandbox environment. Use 'production’ for production environment.

To ensure the security of external resources using Subresource Integrity (SRI), please refer to the following usage example.

<script src="https://js.tappaysdk.com/sdk/tpdirect/<version>" type="text/javascript"
integrity="sha256-<hash_key>" crossorigin="anonymous"></script>

The hash key for each version can be found in the Release Notes.

checkAvailability()

Check if PaymentRequestAPI is available.

/**
    Use TPDirect.paymentRequestApi.checkAvailability() to detect user's browser
    whether is available to use Payment Request API or not.
*/

TPDirect.paymentRequestApi.checkAvailability()

Setup Apple Pay

/**
    Use TPDirect.paymentRequestApi.setupApplePay to setup parameters about Apple Pay.
*/

TPDirect.paymentRequestApi.setupApplePay({
    merchantIdentifier: 'merchant.tech.cherri',
    countryCode: 'TW'
})

Name (*=required)	Type	Content
merchantIdentifier*	String	You registed in Apple Developer Merchant Id If you enable Apple Pay on the Web Merchant Application Service, please fill in merchantIdentifier which generated by TapPay (You can find it from Portal > Payment Methods > Apple Pay > Apple Pay on the Web)
countryCode	String	countryCode , default is TW

PaymentRequest

Create a paymentRequest object setup transaction info to retrieve the Prime.

var paymentRequest = {
    supportedNetworks: ['AMEX', 'JCB', 'MASTERCARD', 'VISA'],
    supportedMethods: ['apple_pay'],
    displayItems: [{
        label: 'TapPay - iPhone8',
        amount: {
            currency: 'TWD',
            value: '1.00'
        }
    }],
    total: {
        label: '總金額',
        amount: {
            currency: 'TWD',
            value : '1.00'
        }
    },
    shippingOptions: [{
            id: "standard",
            label: "🚛 Ground Shipping (2 days)",
            detail: 'Estimated delivery time: 2 days',
            amount: {
                currency: "TWD",
                value: "5.00"
            }
        },
        {
            id: "drone",
            label: "🚀 Drone Express (2 hours)",
            detail: 'Estimated delivery time: 2 hours',
            amount: {
                currency: "TWD",
                value: "25.00"
            }
        }
    ],
    options: {
      requestPayerEmail: true,
      requestPayerName: true,
      requestPayerPhone: true,
      requestShipping: true,
      shippingType: 'shipping'
    }
}

Name	Type	Content
supportedNetworks	Array	Setup supported networks. Support parameters “VISA"、"MASTERCARD"、"JCB” and “AMEX”.
supportedMethods	Array	Setup supported methods
displayItems	Array	Name Type Content label String Item Name amount JSONObject value: item amount currency: item currency isAmountPending Boolean Whether to use apple pay deferred payment, default is false. If isAmountPending is true,transaction amount will show “Amount Pending”. You can only choose isAmountPending or amount.value for the same item More detail please refer to Deferred Payment
total	JSONObject	Name Type Content label String Transaction Summary amount JSONObject value: total amount currency: currency isAmountPending Boolean Whether to use apple pay deferred payment, and default is false. More detail please refer to isShowTotalAmount Boolean Apple Pay total field display amount or AMOUNT PENDING, default is true You can only choose isAmountPending or amount.value for the same item More detail please refer to Deferred Payment
shippingOptions	JSONObject	Name Type Content id String Shipping Name label String Shipping type description detail String Shipping detail description (Apple Pay Only) amount JSONObject value: Shipping amount currency: Shipping currency
options	JSONObject	Name Type Content requestPayerEmail Bool Request Payer Email requestPayerName Bool Request Payer Name requestPayerPhone Bool Request Payer Phone requestShipping Bool Request Payer Shipping address shippingType String Shipping type , If you want to setup please refer to shippingType shipping , delivery , pickup

After you setup payment request object, please use following method to setup Payment Request API

/**
    Use TPDirect.paymentRequestApi.setupPaymentRequest to setup payment requset object
    and return object which decide the user's browser support Payment Request API
    and the user have the card to make payments or not in callback function
*/

TPDirect.paymentRequestApi.setupPaymentRequest(paymentRequest, function (result) {
    if (!result.browserSupportPaymentRequest) {
        console.log('Browser not support PaymentRequest')
        return
    }
    if (result.canMakePaymentWithActiveCard === true) {
        console.log('Current device have supported card')
    } else {
        console.log('Current device without supported card to make payment')
    }
})

setupPaymentRequest have a callback function, callback function have following object properties.

Name	Type	Content
result	JSONObject	Name Type Content browserSupportPaymentRequest Boolean Does Browser support Payment Request API true: Support false: Not Support canMakePaymentWithActiveCard Boolean Does this device have card to make payment Apple pay only check user have setup card in Apple Pay. true: The device have supported card false: The device don’t have supported card

Deferred Payment

Please contact TapPay Customer Service (support@cherri.tech) to activate Apple Pay deferred payment.
Once the function has been activated, the prime could live for 30 days and payment amount is set by Pay by Prime, not by SDK.
The property total.isAmountPending of paymentRequest could determine whether this transaction enables deferred payment or not. Default is false
The property total.isShowTotalAmount of paymentRequest could determine that total amount of the payment sheet shows the sum of each payment item’s amount or AMOUNT PENDING. Default is false
If isAmountPending:true has been set in displayItems of paymentRequest, the payment item’s amount of the payment sheet will show 『．．．』, which means actual payment amount is unknown.

Use Deferred payments, please note the following rules

All of the displayItems isAmountPending is false.

total.isAmountPending	total.isShowTotalAmount	Total field	Prime expire time
true	true	Display Total Amount	30days
true	false	Display Amount Pending	30days
false	true	Display Total Amount	90sec
false	false	Not Support	X

All of the displayItems isAmountPending is true.

total.isAmountPending	total.isShowTotalAmount	Total field	Prime expire time
true	true	Not Support	X
true	false	Display Amount Pending	30days
false	true	Not Support	X
false	false	Not Support	X

All of the displayItems isAmountPending have both.

total.isAmountPending	total.isShowTotalAmount	Total field	Prime expire time
true	true	Display Total Amount	30days
true	false	Display Amount Pending	30days
false	true	Not Support	X
false	false	Not Support	X

Notice
Due to total amount should be set above 0 in MacOS 10.14.1, iOS 12.1 and version lower.
For compatibility, Web SDK v5.4.0 and version higher will set total.amount.value:1 to Apple Pay in following situation.

1. isAmountPending:true has been set in all displayItems of paymentRequest and total amount is set to show 『AMOUNT PENDING』(total.isShowTotalAmount:false)
2. The total of displayItems’ amount is 0 and total amount is set to show 『AMOUNT PENDING』(total.isShowTotalAmount:false)
3. There is no items in displayItems and total amount is set to show『AMOUNT PENDING』(total.isShowTotalAmount:false)

Besides, if you pay on Mac, but verify by fingerprint or face ID through iPhone, total amount of the payment sheet will show 1.

shippingOptions

In paymentRequest ShippingOption without detail.

shippingOptions: [{
    id: "standard",
    label: "🚛 Ground Shipping (2 days)",
    amount: {
        currency: "TWD",
        value: "5.00"
    }
}]

In paymentRequest ShippingOption add detail.

shippingOptions: [{
    id: "standard",
    label: "🚛 Ground Shipping (2 days)",
    // apple pay only
    detail: "Estimated delivery time: 2 days",
    amount: {
        currency: "TWD",
        value: "5.00"
    }
}]

Get Prime

/**
    Use TPDirect.paymentRequestApi.getPrime to get prime from TapPay.
*/

TPDirect.paymentRequestApi.getPrime(function(result) {
    console.log('paymentRequestApi.getPrime result', result)
    if (result.status !== 0) {
        console.error('getPrime failed: ' + result.msg)
        return
    }
    var prime = result.prime
})

Get Prime Result

Get the result and send the Prime back to your server to finish the transaction by calling Pay by Prime API.

{
    "prime": String,
    "total_amount": String,
    "status": Int,
    "msg": String,
    "client_ip": String,
    "payer": {
        "name": String,
        "phone": String,
        "email": String
    },
    "shippingAddress": {
        "country": String,
        "addressLine": ArrayString,
        "region": String,
        "city": String,
        "dependentLocality": String,
        "postalCode": String,
        "sortingCode": String,
        "languageCode": String,
        "organization": String,
        "recipient": String,
        "phone": String
    },
    "shippingOption": String,
    "billingAddress": {
        "country": String,
        "addressLine": ArrayString,
        "region": String,
        "city": String,
        "dependentLocality": String,
        "postalCode": String,
        "sortingCode": String,
        "languageCode": String,
        "organization": String,
        "recipient": String,
        "phone": String
    },
    "methodName": String ("apple_pay")
    "requestId": String,
    "card": {
        "lastfour": String,
        "funding": Int,
        "type": Int,
    },
    "card_info": {
        "bincode": String,
        "lastfour": String,
        "issuer": String,
        "issuer_zh_tw": String,
        "bank_id": String,
        "funding": Int,
        "type": Int,
        "level": String,
        "country": String,
        "countrycode", String,
    },
    "merchant_reference_info": {
        "affiliate_codes": ArrayString,
    },
    "prime_expiry_millis": Number
}

Name	Type	Content
prime	String	A one-time token that represents a customer’s card. You would need this token to pay in the Pay by Prime API.
total_amount	String	This Transaction total amount.
status	Int	Response code. 0 indicates success.
msg	String	Error message
client_ip	String	Customer IP Address
payer	JSONObject	Customer Information Name Type Content name String Customer’s name phone String Customer’s phone number email String Customer’s email
shippingAddress	JSONObject	Delivery address information Name Type country String addressLine ArrayString region String city String dependentLocality String postalCode String sortingCode String languageCode String organization String recipient String phone String
shippingOption	String	Delivery method
billingAddress	JSONObject	Name Type country String addressLine ArrayString region String city String dependentLocality String postalCode String sortingCode String languageCode String organization String recipient String phone String
methodName	String	(“card” , “android_pay” , “google_pay” or “apple_pay”)
requestId	String	Unique payment request identifier.
card	JSONObject	Name Type Content lastfour String Last four digits of the card funding Int Card usage 0 = Credit Card 1 = Debit Card 2 = Prepaid Card type Int Card type 1 = VISA 2 = MasterCard 3 = JCB 4 = Union Pay 5 = AMEX
card_info	JSONObject	Card information： Name Type(Max) Usage bincode String(6) First six digits of the card lastfour String(4) Last four digits of the card issuer String Card issuer issuer_zh_tw String Issuer chinese name bank_id String Bank identifier funding int Card usage -1 = Unknown 0 = credit card 1 = debit card 2 = prepaid card type int Card type -1 = Unknown 1 = VISA 2 = MasterCard 3 = JCB 4 = Union Pay 5 = AMEX level String Card level country String Country of card issuer countrycode String Country code of card issuer
merchant_reference_info	JSONObject	If the merchant uses the co-branded card management in the TapPay portal, and the transaction card number meets the setting, this parameter will be returned. Set in TapPay Portal, must limit 20 character and half alphanumeric. Not support : JKOPAY Name Type Content affiliate_codes Array Affiliated codes set by the merchant in the Co-brand card management area of ​​the TapPay portal.
prime_expiry_millis	Number	Prime Expiry Date Fiexd return parameter on latest Web SDK version (From v5.3)

Example

If you have any questions, please refer our Example or Apple’s Apple Pay Example(https://developer.apple.com/library/content/samplecode/EmporiumWeb/Introduction/Intro.html “Apple Example Project”).
Keep in mind that Apple Pay JavaScript API is only available on iOS device running iOS 10 or later or Mac running macOS Sierra (10.12) or later.

Reference

If you want to integrate more payment methods, please refer to Payment Request API

Q&A

If you have to set frame-src of Content Security Policy, please set following two domains.

1. js.tappaysdk.com
2. fraud.tappaysdk.com
