Create Token

iOS

If you want to know the latest SDK version and the difference between each version, please refer to Github Release Page: TapPay iOS Github

Overview

1. Get Prime from your frontend , send prime to your server.
2. Send prime, frontend_redirect_url, backend_notify_url to TapPay Server.
3. Get payment_url, pass to frontend and use TPDPlusPay.redirect, let customer use Plus Pay.
4. After transaction, via universal link redirect to your App, backend will receive TapPay notify in backend_notify_url.

TPDSetup

+ (instancetype _Nonnull)setWithAppId:(int)appId
                           withAppKey:(NSString *_Nonnull)appKey
                       withServerType:(TPDServerType)serverType;

class func setWithAppKey(_ appKey: String, withAppId appId: Int32, with serverType: TPDServerType) -> Self

1 .Import TPDirect in your AppDelegate, and use TPDSetup to set up your environment in didFinishLaunchingWithOptions.

#import <TPDirect/TPDirect.h>

...


- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
  // Override point for customization after application launch.

  [TPDSetup setWithAppId:AppId withAppKey:@"AppKey" withServerType:TPDServer_SandBox];

  return YES;
}

import TPDirect

...

func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions:
  [UIApplicationLaunchOptionsKey: Any]?) -> Bool {
  // Override point for customization after application launch.

  TPDSetup.setWithAppId(AppId, withAppKey: AppKey, with: TPDServerType.sandBox)

  return true
}

Setup TPDPlusPay

Use this method to initilize TPDPlusPay instance with your universal link.

TPDPlusPay * plusPay = [TPDPlusPay setupWithReturnUrl:@"URL"];

let plusPay = TPDPlusPay.setup(withReturnUrl: "URL")

isPlusPayAvailable

Use this method to check current device installed Plus Pay App.

1. Open Xcode info.plist file.

2. Add a Key named LSApplicationQueriesSchemes, and set the type of the value to Array.

3. Add an item of type String to the Array and set its value to pluspay-fm.

[plusPay isPaymentAvailable];

plusPay.isPaymentAvailable()

Setup universal link

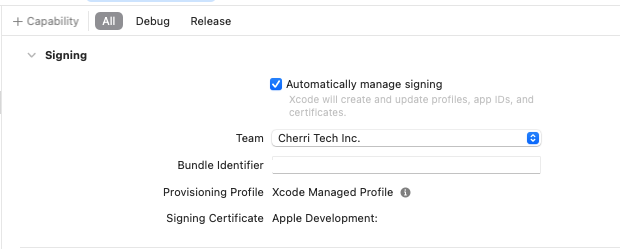

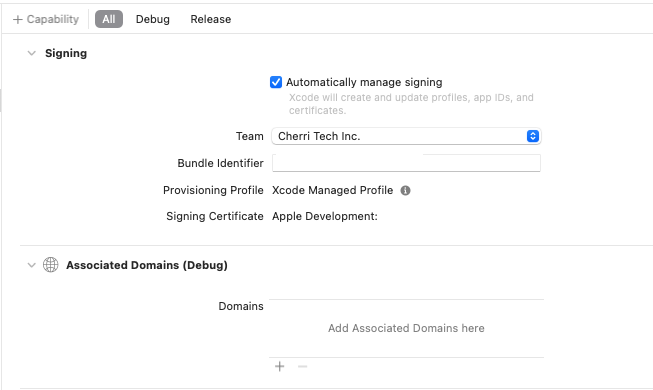

1. Go to xCode TARGET and Signing & Capabilities page and click + Capability button

2. Choose Associated Domains

3. In Associated Domains section click + button add domain

4. Domain should be applinks:{your domain without https://}

5. Setup a config need to upload a file on your server.
create a folder /.well-known in your server then create a file ‘apple-app-site-association’
appID format : <TeamID>.<bundle identifier>

{
    "applinks": {
        "apps": [],
        "details": [
            {
                "appID": "T9G64ZZGC4.Cherri.PlusPayExample",
                "paths": [ "*" ]
            }
        ]
    }
}

Get teamID from apple developer membership

Get bundle identifier from xCode

Get Prime

Call getPrime function , obtain Prime or error message via onSuccessCallback, onFailureCallback, send Prime to your backend server and call Pay By Prime API.

[[[plusPay onSuccessCallback:^(NSString * _Nullable prime) {

    NSLog(@"Prime : %@",prime);

}] onFailureCallback:^(NSInteger status, NSString * _Nonnull message) {

    NSLog(@"status : %ld , message : %@", status, message);

}] getPrime];

plusPay.onSuccessCallback { (Prime) in

    print("Prime : \(Prime!)")

}.onFailureCallback { (status, msg) in

    print("status : \(status), msg : \(msg)")

}.getPrime()

Redirect to Plus Pay App

After Pay by Prime success, pass paymentURL to your frontend and call redirect

Redirect to Plus Pay app , you can get Plus Pay result via callback.

[plusPay redirect:paymentUrl completion:^(TPDPlusPayResult * _Nonnull result) {
    NSString *plusPayResult = [NSString stringWithFormat:@"status : %ld \n recTradeId : %@ \n bankTransactionId : %@ \n orederNumber : %@", (long)result.status, result.recTradeId, result.bankTransactionId, result.orderNumber];
    NSLog(@"result : %@", plusPayResult);
}];

plusPay.redirect(payment_url) { (result) in
    print("status : \(result.status), rec_trade_id : \(result.recTradeId), order_number : \(result.orderNumber), bank_transaction_id : \(result.bankTransactionId)")
}

Handle handlePlusPayUniversalLink

Implement handlePlusPayUniversalLink in AppDelegate continueUserActivity, use this method to check URL come from TapPay and get Plus Pay result.
(iOS version lower than 13.0, please use following method)

- (BOOL)application:(UIApplication *)application continueUserActivity:(NSUserActivity *)userActivity restorationHandler:(void (^)(NSArray<id<UIUserActivityRestoring>> * _Nullable))restorationHandler {
    NSURL * url = userActivity.webpageURL;
    BOOL plusPayHandled = [TPDPlusPay handlePlusPayUniversalLink:url];
    if (plusPayHandled) {
        return YES;
    }
    return NO;
}

func application(_ application: UIApplication, continue userActivity: NSUserActivity, restorationHandler: @escaping ([UIUserActivityRestoring]?) -> Void) -> Bool {

    let url = userActivity.webpageURL
    let plusPayHandled = TPDPlusPay.handleUniversalLink(url)
    if (plusPayHandled) {
        return true
    }
    return false
}

Exception Handle

1. Implement TPDPlusPay addExceptionObserver in AppDelegate didFinishLaunchingWithOptions to observer exception.

[TPDPlusPay addExceptionObserver:(@selector(tappayPlusPayExceptionHandler:))];

TPDPlusPay.addExceptionObserver(#selector(tappayPlusPayExceptionHandler(notofication:)))

2. In AppDelegate add tappayPlusPayExceptionHandler function , receive notification when exception happen and implement parseURL to get Plus Pay result.

- (void)tappayPlusPayExceptionHandler:(NSNotification *)notification {

    TPDPlusPayResult * result = [TPDPlusPay parseURL:notification];

    NSLog(@"status : %@ , orderNumber : %@ , recTradeId : %@ , bankTransactionId : %@",result.status , result.orderNumber , result.recTradeId , result.bankTransactionId);

}

@objc func tappayPlusPayExceptionHandler(notofication: Notification) {

    let result : TPDPlusPayResult = TPDPlusPay.parseURL(notofication)

    print("status : \(result.status) , orderNumber : \(result.orderNumber) , recTradeid : \(result.recTradeId) , bankTransactionId : \(result.bankTransactionId) ")

}

Test Method in sandbox

Please contact TapPay Support
Email : Support@cherri.tech
