Create Token

iOS

如欲了解最新版號 SDK 以及各版號之間的差異性，請參考 Github Release Page : TapPay iOS Github

Overview

1. 透過前端呼叫 getPrime 取得 Prime , 把 Prime 送往後端伺服器
2. 從您的後端伺服器將 Prime, frontend_redirect_url, backend_notify_url 送到 TapPay
3. 您的後端取得 payment_url 送往前端使用 TPDPiWallet.redirect 開啟 Pi 錢包 App 付款
4. 付款完成後，透過您設定的 universal link 回到您的 App，後端透過 backend_notify_url 路由中收到 TapPay 通知

1 .在您的 AppDelegate 中 import TPDirect，並在 didFinishLaunchingWithOptions 中使用 TPDSetup 來設定環境

#import <TPDirect/TPDirect.h>

...


- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
  // Override point for customization after application launch.

  [TPDSetup setWithAppId:AppId withAppKey:@"AppKey" withServerType:TPDServer_SandBox];

  return YES;
}

import TPDirect

...

func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions:
  [UIApplicationLaunchOptionsKey: Any]?) -> Bool {
  // Override point for customization after application launch.

  TPDSetup.setWithAppId(AppId, withAppKey: AppKey, with: TPDServerType.sandBox)

  return true
}

isPiWalletAvailable

判斷是否有安裝 Pi 錢包 app

1. 打開 Xcode info.plist file.

2. 新增屬性 , 名稱設定為 LSApplicationQueriesSchemes , 並將類別設為 Array

3. 新增一個 item , 將類別設為 String , 值設定為 pi

[TPDPiWallet isPiWalletAvailable];

TPDPiWallet.isPiWalletAvailable()

Setup universal link

設定 universal link

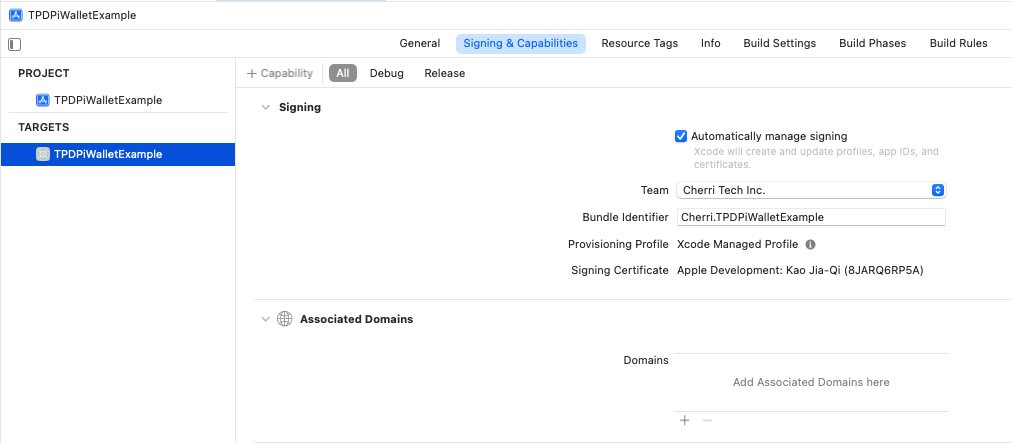

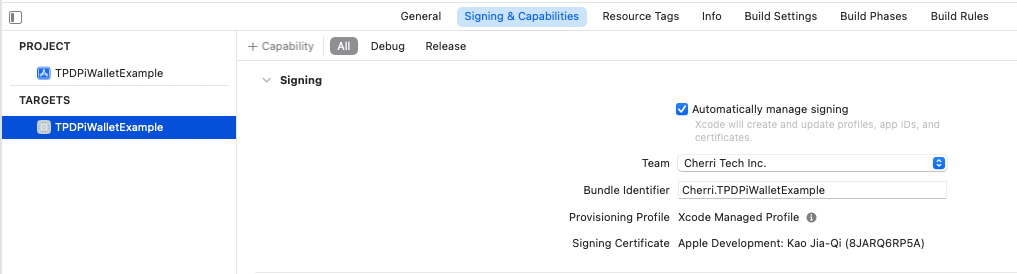

1. 打開 xCode TARGETS, Signing & Capabilites 頁面，按 + Capability 按鈕

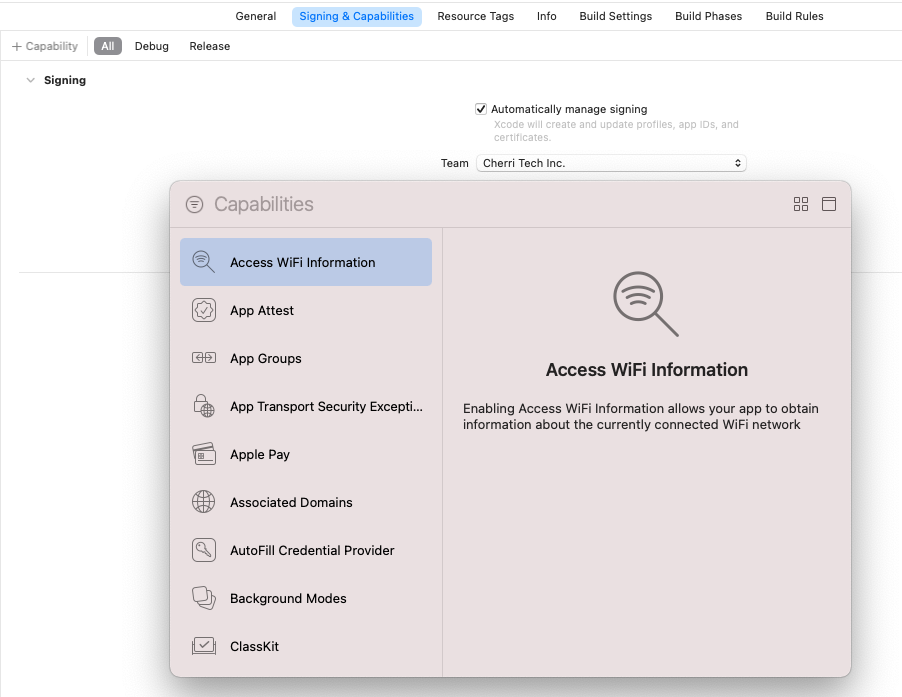

2. 選擇 Associated Domains

3. 在 Associated Domains 按 + 號，新增您的 domain

4. Domain 的格式為 applinks:{your domain} (不用加上 https://)

5. 在您的 server 新增一個路徑 /.well-known
新增一個檔案 apple-app-site-association 不用副檔名
appID format : <TeamID>.<bundle identifier>

{
    "applinks": {
        "apps": [],
        "details": [
            {
                "appID": "T9G64ZZGC4.Cherri.TPDPiWalletExample",
                "paths": [ "*" ]
            }
        ]
    }
}

取得 teamID 的位置在 apple developer membership

取得 bundle identifier 在 xCode

Setup TPDPiWallet

使用此方法帶入您自定義的 universal link 初始化 TPDPiWallet 物件

TPDPiWallet * piWallet = [TPDPiWallet setupWithReturnUrl:@"URL"];

let piWallet = TPDPiWallet.setup(withReturnUrl: "URL")

Get Prime

呼叫 getPrime 函式 , 透過 onSuccessCallback . onFailureCallback 取得 Prime 或錯誤訊息 , 將 Prime 送至您的後端伺服器並呼叫 Pay By Prime API.

[[[piWallet onSuccessCallback:^(NSString * _Nullable prime) {

    NSLog(@"Prime : %@",prime);

}] onFailureCallback:^(NSInteger status, NSString * _Nonnull message) {

    NSLog(@"status : %ld , message : %@", status, message);

}] getPrime];

piWallet.onSuccessCallback { (Prime) in

    print("Prime : \(Prime!)")

}.onFailureCallback { (status, msg) in

    print("status : \(status), msg : \(msg)")

}.getPrime()

Redirect to Pi Wallet App

將 Pay By Prime 成功後取得的 payment_url 帶入

畫面將導轉至 Pi 錢包 付款畫面，您可以透過 callback 取得交易結果

[piWallet redirect:paymentUrl completion:^(TPDPiWalletResult * _Nonnull result) {
    NSString *piWalletResult = [NSString stringWithFormat:@"status : %ld \n recTradeId : %@ \n bankTransactionId : %@ \n orederNumber : %@", (long)result.status, result.recTradeId, result.bankTransactionId, result.orderNumber];
    NSLog(@"result : %@", piWalletResult);
}];

piWallet.redirect(payment_url) { (result) in
    print("status : \(result.status), rec_trade_id : \(result.recTradeId), order_number : \(result.orderNumber), bank_transaction_id : \(result.bankTransactionId)")
}

Handle handlePiWalletUniversalLink

在 AppDelegate continueUserActivity 中實做 handlePiWalletUniversalLink 使用此方法來判斷 URL 來自 TapPay (iOS 13.0 以下請使用此方法)

- (BOOL)application:(UIApplication *)application continueUserActivity:(NSUserActivity *)userActivity restorationHandler:(void (^)(NSArray<id<UIUserActivityRestoring>> * _Nullable))restorationHandler {
    NSURL * url = userActivity.webpageURL;
    BOOL piWalletHandled = [TPDPiWallet handleUniversalLink:url];
    if (piWalletHandled) {
        return YES;
    }
    return NO;
}

func application(_ application: UIApplication, continue userActivity: NSUserActivity, restorationHandler: @escaping ([UIUserActivityRestoring]?) -> Void) -> Bool {

    let url = userActivity.webpageURL
    let piWalletHandled = TPDPiWallet.handleUniversalLink(url)
    if (piWalletHandled) {
        return true
    }
    return false
}

Exception Handle

1. 使用此方法監聽是否有意外狀況發生 , 並在AppDelegate didFinishLaunchingWithOptions 中實作 tappayPiWalletExceptionHandler 函式

[TPDPiWallet addExceptionObserver:(@selector(tappayPiWalletExceptionHandler:))];

TPDPiWallet.addExceptionObserver(#selector(tappayPiWalletExceptionHandler(notofication:)))

2. 在 AppDelegate 加入 tappayPiWalletExceptionHandler 函式 , 發生意外狀況時接收通知 , 並實作 parseURL 取得交易結果

- (void)tappayPiWalletExceptionHandler:(NSNotification *)notification {

    TPDPiWalletResult * result = [TPDPiWallet parseURL:notification];

    NSLog(@"status : %@ , orderNumber : %@ , recTradeId : %@ , bankTransactionId : %@",result.status , result.orderNumber , result.recTradeId , result.bankTransactionId);

}

@objc func tappayPiWalletExceptionHandler(notofication: Notification) {

    let result : TPDPiWalletResult = TPDPiWallet.parseURL(notofication)

    print("status : \(result.status) , orderNumber : \(result.orderNumber) , recTradeid : \(result.recTradeId) , bankTransactionId : \(result.bankTransactionId) ")

}

Test Method in sandbox

請聯絡 TapPay Support
Email : Support@cherri.tech
