Create Token

iOS

如欲了解最新版號 SDK 以及各版號之間的差異性，請參考 Github Release Page : TapPay iOS Github

Overview

1. 透過前端呼叫 getPrime 取得 Prime , 把 Prime 送往後端伺服器
2. 從您的後端伺服器將 Prime , frontend_redirect_url , backend_notify_url 送到 TapPay
3. 您的後端取得 payment_url 送往前端使用 TPDLinePay.redirectWithUrl , 讓使用者使用 LINE Pay 付款
4. 付款完成, 透過您設定的 Return URL 回到您的 App , 後端透過 backend_notify_url 路由中收到 TapPay 通知
5. 為提高偽卡交易的準確度, 若可以請開啟IDFA功能

TPDSetup

+ (instancetype _Nonnull)setWithAppId:(int)appId
                           withAppKey:(NSString *_Nonnull)appKey
                       withServerType:(TPDServerType)serverType;

class func setWithAppKey(_ appKey: String, withAppId appId: Int32, with serverType: TPDServerType) -> Self

1 .在您的 AppDelegate 中 import TPDirect，並在 didFinishLaunchingWithOptions 中使用 TPDSetup 來設定環境

#import <TPDirect/TPDirect.h>

...


- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions {
  // Override point for customization after application launch.

  [TPDSetup setWithAppId:AppId withAppKey:@"AppKey" withServerType:TPDServer_SandBox];

  return YES;
}

import TPDirect

...

func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions:
  [UIApplicationLaunchOptionsKey: Any]?) -> Bool {
  // Override point for customization after application launch.

  TPDSetup.setWithAppId(AppId, withAppKey: AppKey, with: TPDServerType.sandBox)

  return true
}

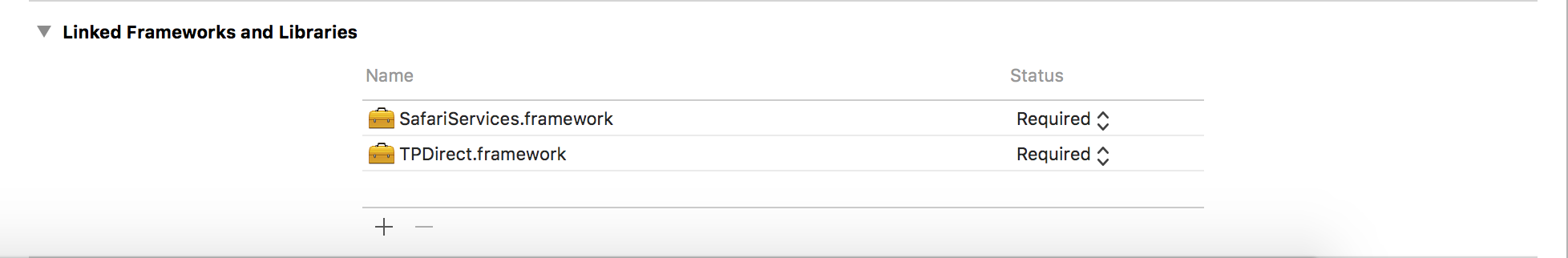

2 .點選左邊您的專案後，在 General -> Linked Frameworks and Libraries 加入 SafariServices.framework

3 .為提高偽卡交易的準確度，若可以請開啟IDFA功能

Setup URL Scheme

自定義您的 App Scheme

1. 打開 Xcode info.plist file.

2. 新增屬性 , 名稱設定為 URL types

3. 在 URL types , item 0 新增屬性 , 名稱設定為 URL identifier , 自定義的 URL Scheme 名字

4. 在 URL types , item 0 新增屬性 , 名稱設定為 URL Scheme , 並自定義您的 App Scheme

1. 打開 Xcode info.plist file.

2. 新增屬性 , 名稱設定為 LSApplicationQueriesSchemes , 並將類別設為 Array

3. 新增一個 item , 將類別設為 String , 值設定為 line

isLinePayAvailable

您可以使用此方法確認裝置是否可以使用 LINE App

[TPDLinePay isLinePayAvailable];

TPDLinePay.isLinePayAvailable()

Install LINE App

使用此方法開啟 App Store 安裝 LINE App 頁面

[TPDLinePay installLineApp];

TPDLinePay.installLineApp()

Setup TPDLine Pay

使用此方法帶入您自定義的 URL Scheme 初始化 TPDLinePay 物件

Return URL 格式 : “Your Custom URL Scheme://Your Custom path”

TPDLinePay *linePay = [TPDLinePay setupWithReturnUrl:@"Your Custom URL Scheme://Your Custom path"];

let linePay = TPDLinePay.setup(withReturnUrl: "Your Custom URL Scheme://Your Custom path")

Get Prime

呼叫 getPrime 函式 , 透過 onSuccessCallback . onFailureCallback 取得 Prime 或錯誤訊息 , 將 Prime 送至您的後端伺服器並呼叫 Pay By Prime API.

[[[linePay onSuccessCallback:^(NSString * _Nullable prime) {

    NSLog(@"Prime : %@",prime);

}]onFailureCallback:^(NSInteger status, NSString * _Nonnull message) {

    NSLog(@"status : %ld , message : %@", status, message);

}] getPrime];

linePay.onSuccessCallback { (Prime) in

    print("Prime : \(Prime!)")

}.onFailureCallback { (status, msg) in

    print("status : \(status), msg : \(msg)")

}.getPrime()

Redirect to LINE Pay Payment Page

將 Pay By Prime 成功後取得的 payment_url 帶入

畫面將導轉至 LINE Pay 付款畫面,您可以透過 callback 取得交易結果

[linePay redirectWith:paymentUrl ViewController:self completion:^(TPDLinePayResult * _Nonnull result) {

    NSLog(@"status : %@ , orderNumber : %@ , recTradeId : %@ , bankTransactionId : %@",result.status , result.orderNumber , result.recTradeId , result.bankTransactionId);

}];

linePay.redirect(with: paymentURL, viewController: self, completion: { (result) in

    print("stauts : \(result.status) , recTradeId : \(result.recTradeId) , bankTransactionId : \(result.bankTransactionId) , order_number : \(result.orderNumber)")

})

Handle URL

在 AppDelegate openURL 中實做 handleURL 使用此方法來判斷 URL 來自 TapPay
(iOS 9.0 以上請使用此方法)

- (BOOL)application:(UIApplication *)app openURL:(NSURL *)url options:(NSDictionary<UIApplicationOpenURLOptionsKey, id> *)options {
    BOOL tapPayHandled = [TPDLinePay handleURL:url];
    if (tapPayHandled){
        return YES;
    }
    return NO;
}

func application(_ app: UIApplication, open url: URL, options: [UIApplicationOpenURLOptionsKey : Any] = [:]) -> Bool {
    let tapPayHandled = TPDLinePay.handle(url)
    if (tapPayHandled) {
        return true
    }
    return false
}

(iOS 9.0 以下請使用此方法)

- (BOOL)application:(UIApplication *)application openURL:(NSURL *)url sourceApplication:(NSString *)sourceApplication annotation:(id)annotation {
    BOOL tapPayHandled = [TPDLinePay handleURL:url];
    if (tapPayHandled) {
        return YES;
    }
    return NO;
}

func application(_ application: UIApplication, open url: URL, sourceApplication: String?, annotation: Any) -> Bool {
    let tapPayHandled = TPDLinePay.handle(url)
    if (tapPayHandled) {
        return true
    }
    return false
}

Exception Handle

1. 使用此方法監聽是否有意外狀況發生 , 並在AppDelegate didFinishLaunchingWithOptions 中實作 tappayLinePayExceptionHandler 函式

[TPDLinePay addExceptionObserver:(@selector(tappayLinePayExceptionHandler:))];

TPDLinePay.addExceptionObserver(#selector(tappayLinePayExceptionHandler(notofication:)))

2. 在 AppDelegate 加入 tappayLinePayExceptionHandler 函式 , 發生意外狀況時接收通知 , 並實作 parseURL 取得交易結果

- (void)tappayLinePayExceptionHandler:(NSNotification *)notification {

    TPDLinePayResult * result = [TPDLinePay parseURL:notification];

    NSLog(@"status : %@ , orderNumber : %@ , recTradeId : %@ , bankTransactionId : %@",result.status , result.orderNumber , result.recTradeId , result.bankTransactionId);

}

@objc func tappayLinePayExceptionHandler(notofication: Notification) {

    let result : TPDLinePayResult = TPDLinePay.parseURL(notofication)

    print("status : \(result.status) , orderNumber : \(result.orderNumber) , recTradeid : \(result.recTradeId) , bankTransactionId : \(result.bankTransactionId) ")

}
